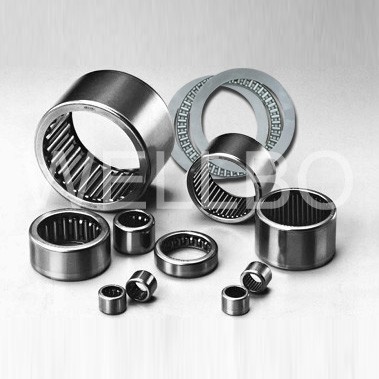

Drawn Cup Needle Roller bearings

Needle roller bearings have a high load carrying capacity in addition to their low cross-section and stiffness. They are especially suitable for bearing arrangements where radial space is limited.

Widely used in motorcycles, mopeds, automobiles, power/pneumatic tools, high industrial/engineering and printing machinery, machine tools, textile machineries etc.

needle bearing.jpg

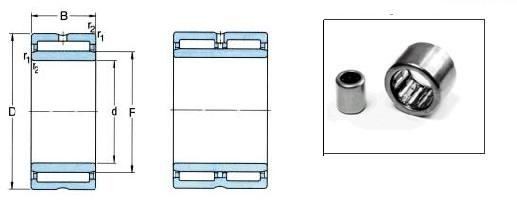

Bearing Designation		Mass	Boundary Dimensions(mm)
Current	Original Code	Approx	Fw(d)	D	C(B)
Current	Original Code	g	mm
HK1416	57941/14	13.9	14	20	16
HK15×20×12	7941/15	8.4	15	20	12
HK15×20×16	7942/15	11.4	15	20	16
HK15×20×20	7943/15	13.8	15	20	20
HK1512	37941/15	11.1	15	21	12
BK1512	35941/15	12.7	15	21	12
HK1514	47941/15	12.7	15	21	14
HK1515		14.2	15	21	15
HK1516	57941/15	15	15	21	16
BK1516	55941/15	16.5	15	21	16
HK1522	SZ-439	20.4	15	21	22
HK15×22×12	7948/15	12.5	15	22	12
HK1612	37941/16	11.7	16	22	12
BK1612	35941/16	13.8	16	22	12
HK1614	47941/16	14.4	16	22	14
HK1616	57941/16	15.8	16	22	16
BK1616	55941/16	17.6	16	22	16
HK1622	87941/16	21.7	16	22	22
HK1712	37941/17	12.2	17	23	12
BK1712	35941/17	14.5	17	23	12
HK1714	7941/17	14	17	23	14
HK1716	57941/17	15.9	17	23	16
HK1718	7942/17	19	17	23	18
HK17×25×14	37942/17K	17.7	17	25	14
HK17×25×18	57942/17K	23.5	17	25	18
HK1812	37941/18	13.1	18	24	12
HK1816	57941/18	17.5	18	24	16
BK1816	55941/18	19.9	18	24	16
HK2010	27941/20	11.8	20	26	10
HK2012	37941/20	14.1	20	26	12
HK2014	47941/20	15.7	20	26
