High tensile hex head bolt Din931 933
High tensile hex head bolt Din931 933
WELLBO provide steel structural series be made of carbon steel, alloy steel, stainless steel.
Heavy hex series with diameter from M12 to M36(1/2"-1 1/2") Length from 25mm to 1000mm,
Property class as per ISO 898:8.8-10.9,GB 1231:8.8S,10.9S,JIS 1186;EN 14399;ASTM A325/A325M,A490/A490M.

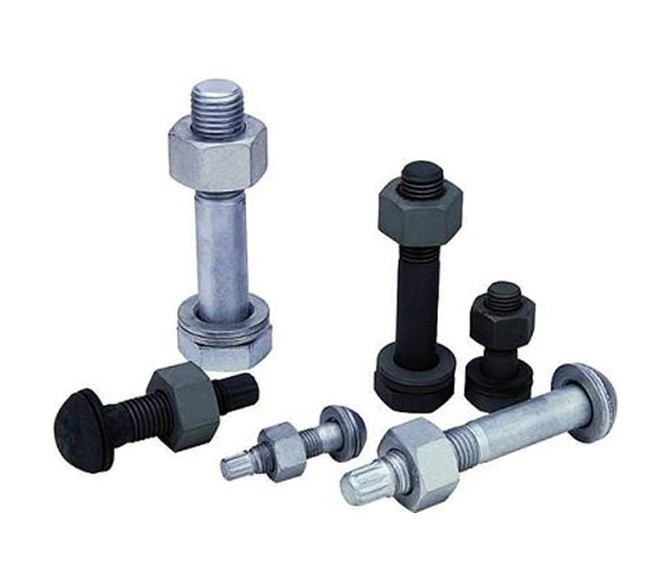

For tension control structural series product capacity diameter from M12 to M36(1/2"-1 1/2")
Length from 25mm to 1000mm, property class as per GB3632:10.9S;ASTMF1852 JSSII-09
| Size | M4 | M5 | M6 | M8 | M10 | M12 | M14 | M16 | M18 | M20 | M22 | M24 | |
| Pitch of Thread | 0.7 | 0.8 | 1 | 1.25 | 1.5 | 1.75 | 2 | 2 | 2.5 | 2.5 | 2.5 | 3 | |
| Width across flat,max | 7 | 8 | 10 | 13 | 17 | 19 | 22 | 24 | 27 | 30 | 32 | 36 | |
| Thickness of head | 2.8 | 3.5 | 4 | 5.3 | 6.4 | 7.5 | 8.8 | 10 | 11.5 | 12.5 | 14 | 15 | |
| DIN931 | 1≤125 | 18 | 22 | 26 | 30 | 34 | 38 | 46 | 50 | 54 | |||
| GB5782 | |||||||||||||
| L of thread | 125<1≤200 | 24 | 28 | 32 | 36 | 40 | 44 | 52 | 56 | 60 | |||
